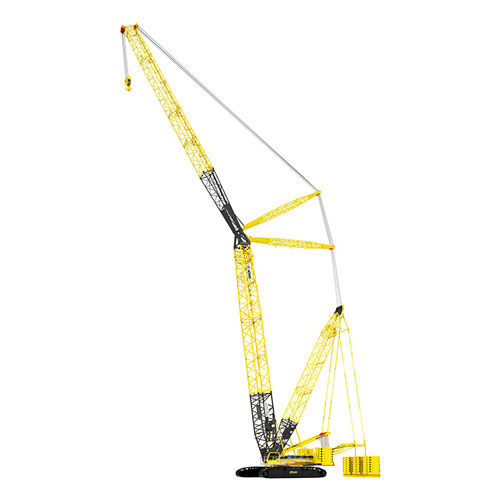

Crawler Crane

Crawler Crane Chinese Heavy Duty Construction Equipment

Type: Crawler crane
Model NO.: XGC500
Port:Shanghai
Payment Terms: L/C,T/T
Specification:CE
Production Capacity: 10000PC/Year

Contact Now

Crawler Crane Chinese Heavy Duty Construction Equipment PRODUCT DETAILS

Crawler Crane Chinese Heavy Duty Construction Equipment

Items
Max lifting capacity	Standard mode	Heavy boom	Unit	450
		Light boom	T	230
		Tower jib	T	226.4
	SL mode	Heavy boom	T	500
		Light boom	T	230
		Tower jib	T	230
Boom length			M	24-96
Boom luffing angle			。	-88
Tower jib length			M	24-84
Winch max single line speed(no load, at 6thlayer)			m/min	130
Boom luffing gear max. single line speed(no load, at 1st layer)			m/min	2×53
Wire rope diam			Mm	28
Max rope single line pull			T	17.2
Slewing speed			r/min	1
Travel speed			Km/h	0.73
Grade ability				30%
Mean ground pressure			Mpa	0.18
Engine output power			Kw	360
Total vehicle weight(24m heavy boom, 500t capacity hook block)			T	375
Max. weight of single unit in travel configuration			t	50
Max. dimension of single unit(tumtable) in travel configuration(L×W×H)			m	11.5×3.4×3.4
