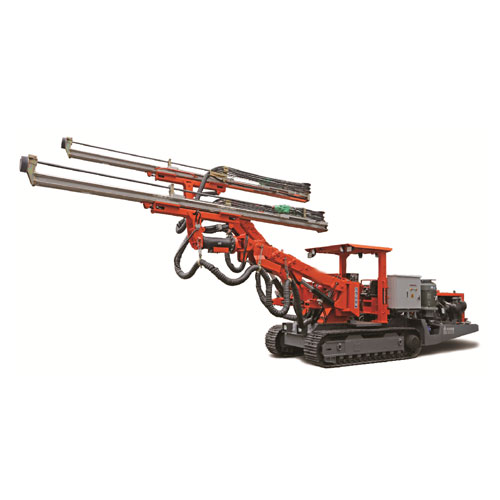

Jumbo Drill Rock Drilling Rig Boring Mining Equipment
DJW2-50
Project
Unit
Parameter
Overall Dimension
(mm)
12500*2080*3045
Application Size
(mm)
8350*6350
Drilling Depth
(mm)
2795/3405/4015
Drilling Speed
(m/min)
0.8-2
Main Motor Power
2*55KW
Hydraulic Oil Tank
(L)
300
Operating Weight
(kg)
20500
Travelling Speed
(km/h)
2.2-4.2
Gradebility
(%)
14
Drilling Arm Model
HC50/HC109
Arm Length
(mm)
3090/3700/4310
Steering
40
Diesel Engine Power
(kw)
123
Water Flow speed
(L/Min)
66
Water Flow Pressure
(Mpa)
0.8-1.2
