Model NO.: HB37A
Port: Shanghai
Payment Terms: L/C,T/T
Specification: CE
Production Capacity: 10000PC/Year
Tech. Data
|
Item |
Parameter |
|
Max. speed |
90km |
|
Min. turning diameter |
18.4m |
|
Brake distance |
7m |
|
Approach angle |
31° |
|
Departure angle |
12° |
|
Chassis model |
CXZ51Q ( Japan ) |
|
Total weight |
28150kg |
|
1st axle load |
6780kg |
|
2nd, 3rd axle load |
21220kg |
|
Engine model |
6WF1 |
|
Max. Engine power |
287kW |
|
Max. Engine torque |
1862N.m |
|
Max. grade-ability |
38% |
|
Fuel consumption limit |
34L/100km |
|
Outline dimensions (Length´ Width ´Height) |
11990´2490´3900mm |
Technical Data for Pumping Operation
|
Item |
Parameter |
|
Theoretical output |
138/90m3/h |
|
Max. delivery pressure |
8.7/13MPa |
|
Reach height |
37.4m |
|
Reach depth |
23.7m |
|
Front outrigger transverse span |
7280mm |
|
Rear outrigger transverse span |
6600mm |
|
Outrigger longitudinal span |
6860mm |
|
Delivery pipe diameter |
125mm |
|
Remote control distance |
100m |
|
Placing boom slewing range |
370° |
*Required
Products

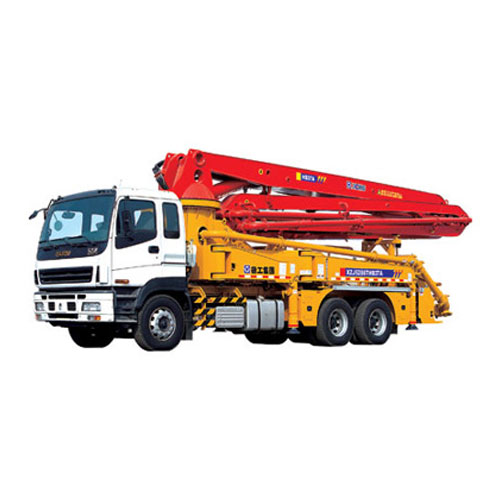

Concrete Pump Truck HB37ACopyright © Shanghai Super-above Industry Holdings Co.,Ltd Designed by Site.nuo.cn
