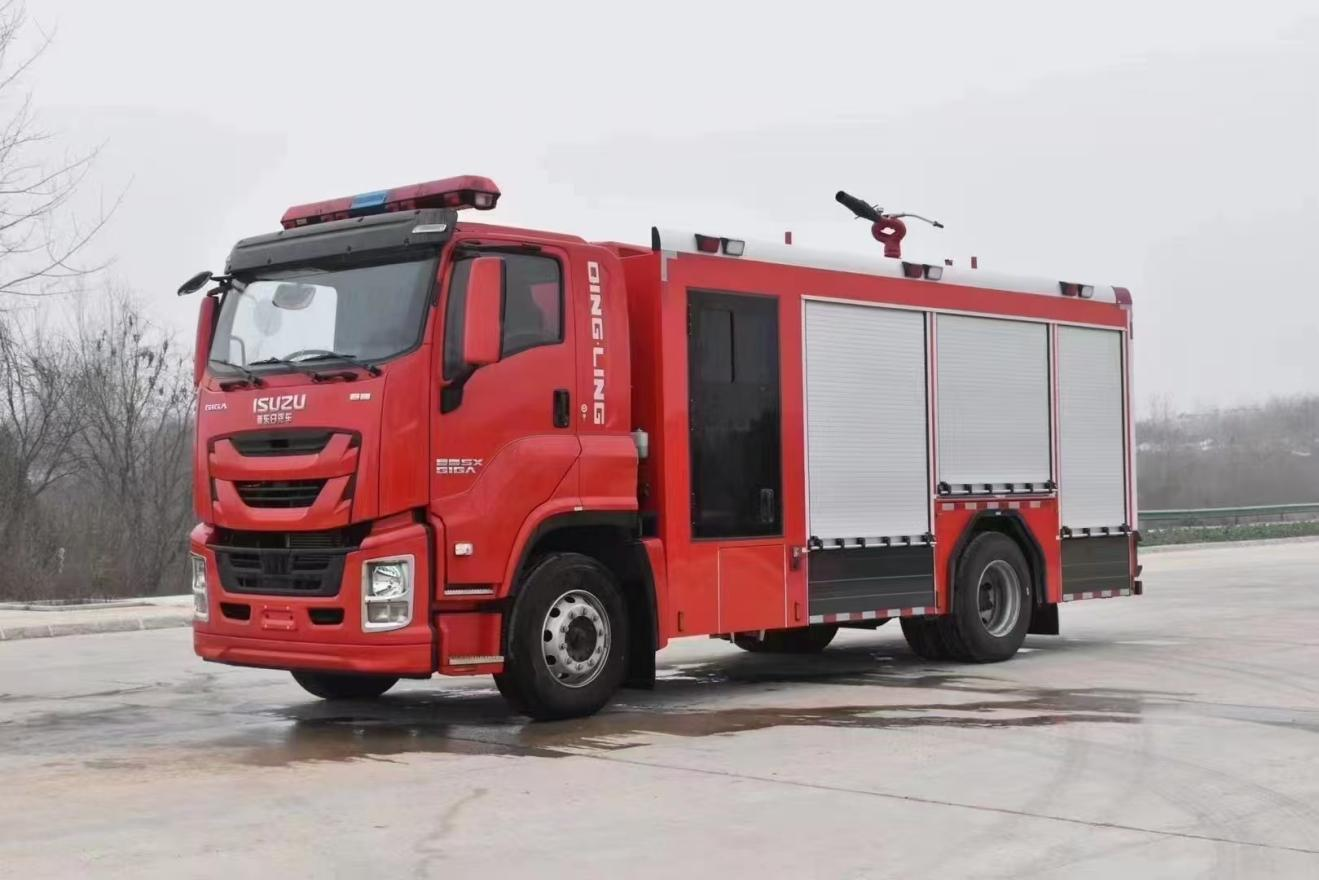

ISUZU 6000L Foam Fire Truck

ITEM

PARAMETER

UNIT

DATA

Overall Dimensions

mm

8160×2540×3750

GVW

kg

16900 approximate

Curb Weight

10450approximate

Rated Load

6000 approximate

Max Speed

km/h

95

Leaf Spring (F/R)

pcs

17/12

Drive Wheel

4*2

Chassis Model

      QL1180EQFRY

Manufacturer

Qingling（ISUZU） Motors Co., Ltd.

Wheel Base

mm

4500

Tire Specification

inch

295/80R22.5 16PR

No. of Tires

pcs

6+1 spare

Engine

Engine Type

6HK1-TCG61

4 stroke water cooling , direct Injection

Manufacturer

 ISUZU (China) Engine Co., Ltd

Engine Fuel

Diesel

Engine Horsepower

hp

240

Displacement

ml

7790

Emission Standard

Euro VI

Cab

Allow passenger

2+3

Row

One and a half rows

and an independent passenger compartment

Water tanker

Capacity

L

6000

Fire fight pump

Type

     Centrifugal Pump

Model

     CB10/40

Pressure

Mpa

1.0

Flow Rate

L/S

40

Section depth

m

>7

Section  time

Second

<30

Delivery Outlet

mm

65

Fire fighting gun

Model

PS40

Pressure

Mpa

1

Flow Rate

L/S

40

Range distances

m

>55

Rotary angle

deg

360

Pipeline system

Inner inlet pipe

Φ100mm one  inlet pipe , from tanker to fire flighting pump . WithΦ100mm butterfly valve connect water tanker and water pump .

Exterior inlet pipe

Both sides of the pump inlet pipeΦ100mm, get out of straw, pull the tooth  and  tube within the interface, ( plug seal ) ; both sides of the pump directional drawing water suction pipe . Φ100×2m (4 pieces )

     Equipment

1. 80W alarm light

Rotating lights switch

PTO Control Switch

One manhole

Install overflow valve

Fluid level indicator

Effluent discharge inlet

Long rows of lights

Fire ground Light ( 12V ,60W)
