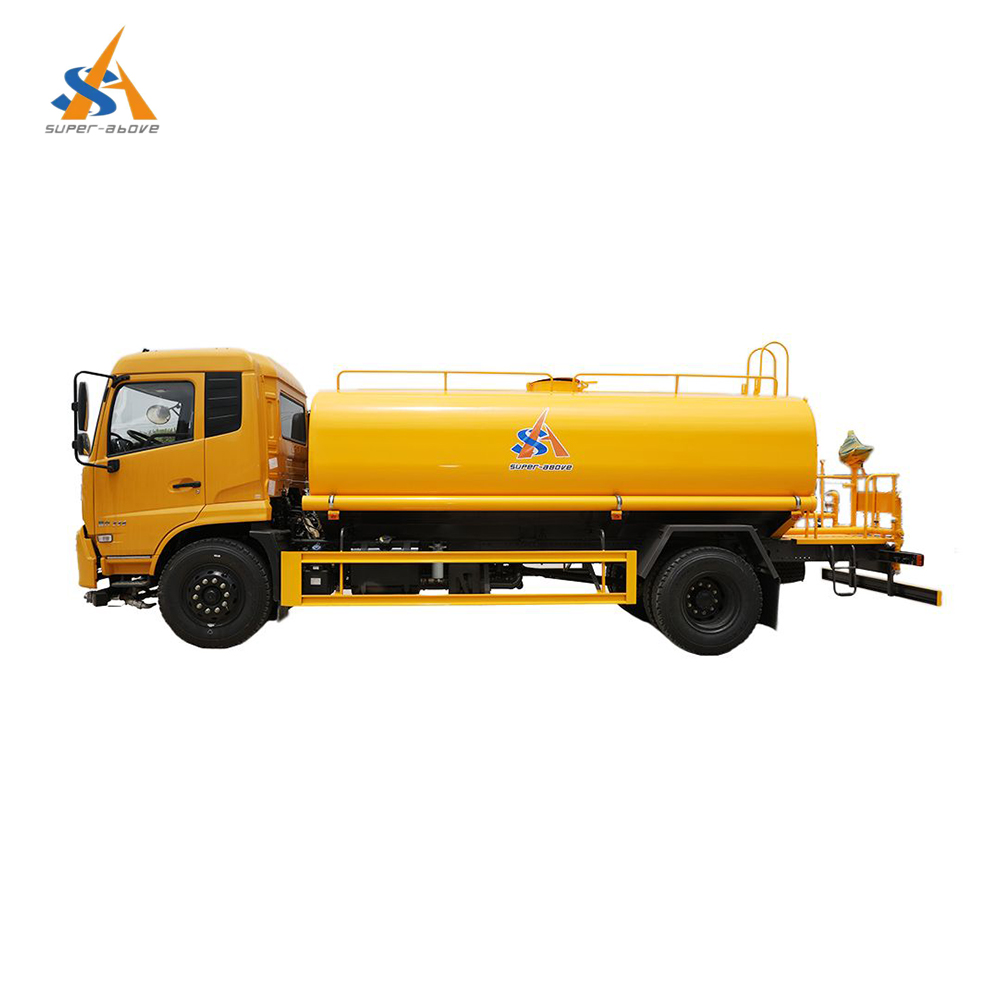

Specification of Sprinkler Truck / Watering Cart DLK
|
|||
|
Item
|
Specification
|
Item
|
Specification
|
|
General
|
|||
|
Truck Name
|
Sprinkler truck / Watering Cart
|
Overall Dimension (mm)
|
7000×2120×2600
|
|
Truck Brand
|
Dongfeng
|
Gross / Curb Weight (kg)
|
8495 / 3800
|
|
|
Approach / Departure Angle (°)
|
20 / 10
|
|
|
Max. Speed (km/h)
|
90
|
Front / Rear Overhang (mm)
|
1210 / 1990
|
|
Chassis
|
|||
|
Chassis Brand
|
DF
|
Chassis Model
|
DFA1080SJ11D3
|
|
Wheel Base (mm)
|
3950
|
Leaf Spring
|
8/10+7;
11/9+7 |
|
Traction System
|
4 x 2
|
Quantity of Axles
|
2
|
|
Cab Capacity
|
1+1
|
Front / Rear Axle Load (kg)
|
3390 / 5105
|
|
Transmission
|
manual
|
Front / Rear Wheel Tread (mm)
|
1770 / 1586
1831 / 1640 |
|
Tyre Model
|
7.50-16 12PR;
8.25-16 14PR; 7.50R16 12PR; 8.25R16 14PR |
Quantity of Tyre
|
6
|
|
Engine (Motor)
|
|||
|
Brand
|
DF
|
Type of Fuel
|
Diesel
|
|
Model
|
CY4102-CE4B
|
Displacement (ml)
|
3856
|
|
Max. Power (KW/hp)
|
100 / 136
|
Emission Standard
|
Euro 4
|
|
Cylinder Stator
|
4, all cylinders arranged vertically in line
|
Max Torque (N.m)
|
420
|
|
Quantity of Valves Per Cylinder
|
4
|
Maximum Torque Speed (rpm)
|
1300-1500
|
|
Cylinder Diameter × Stroke (mm)
|
102 x 118
|
Motor Rated Rotating Speed (rmp)
|
2800
|
|
Full Load Minimum Fuel Consumption Rate (g/KW.h)
|
≤200
|
Air Intake Form
|
inter-cooling, water cooling
|
|
Compression Ratio
|
17 : 1
|
Noise From 1 Meter
|
≤114dB
|
|
Motor Net Weight (kg)
|
430
|
ABS
|
yes
|
|
Equipments
|
|||
|
Tank Capacity (L)
|
8000-9200
|
Tank Material
|
4-6mm carbon/stainless steel
|
|
Water Pump Flow(m³/h)
|
60
|
Watering Width(m)
|
≥14
|
|
Vertical Suction (m)
|
≥6
|
Water Cannon Covering Range (m)
|
≥23
|
|
Priming Time (min)
|
<5
|
Lift of Pump (m)
|
45
|
|
Water Inlet Diameter (mm)
|
40
|
|
|
